IBC Spare part series -1000L / ballon
Standard S.K.U.s 3710171110
Capacity 1000 L
Height 1005 mm
Length 1160 mm
Width 960 mm
Total weight 16.5 kg
Pallet type
Ballon material HMWHDPE + UV
Special properties
Screw cap diameter DN 150 +EPDM
Discharge valve butterfly DN 50 + EPDM
Lable
Sector of use food / chemicals / oils
UN approval


Main Features and Applications
  • A composition of the metal shell toughness and the plastic liner chemical stability .creates a super durable package.
  • The Inner container is manufactured from high molecular weight high density polyethylene for maximum chemical resistance.
  • The frame is manufactured from galvanized welded steel.
  • The container complies with FDA code 175.300 for indirect contact with food and drugs.
  • Two types of pallets are available for best product fit. The wooden pallets are heat treated.
  • All pallets are designed for best fit for palletizing the IBC's one on top of the other.
  • Dimensions are designed for optimal fit is a truck or container
  • UN's approval is available for the transportation of hazardous materials by land or sea.
  • A "light protected" and a "blind" version are available.
  • Different fittings and accessories are available for the top lid and the bottom valve.

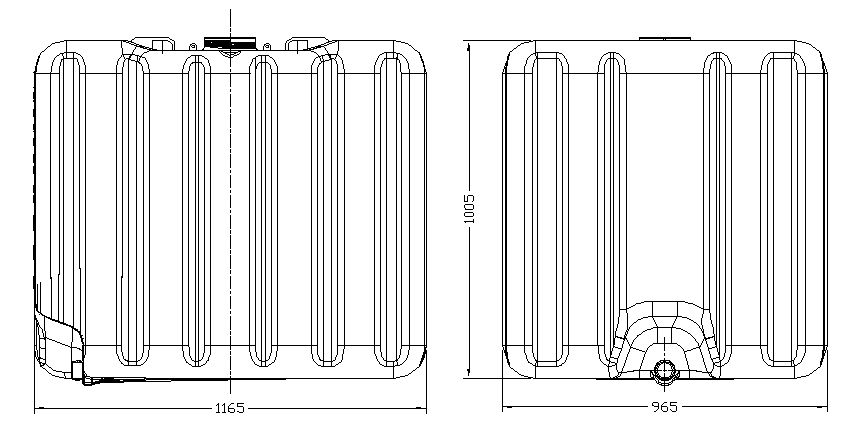

views

Pallet load for local market   Freight load

For local market distribution



Units / Metal cage Units/ Pallet
Units / Layer

6

1

Number of layers

2

2

Total

12

2




Truck Full Trailer
Semi Trailer
Metal Cages / Vehicle

3

5

4

Total Vehicle

36

60

48

Pallets / Vehicle

18

30

20

Total Vehicle

36

60

40


Container load

Palletized Load
Free Load
Container Units / Pallet Pallets / Cont Units / Cont
20FT







20

40FT







44

HC







44


Accessories
Standard


150 mm IBC lid

Pachmas S.K.U:  0144001501


IBC Butterfly valve S60X6 ETFE gasket
Pachmas S.K.U:  0301000760

Optional

150 mm IBC lid for deep tube aplication (CDS1)
Pachmas S.K.U: 0144001503


150 mm IBC lid with 56X4 vent plug

Pachmas S.K.U:  0144001502


Plastic Nozzle for IBC
Pachmas S.K.U:  0301000761



Alternative


225 mm IBC lid
Pachmas S.K.U: 0144002251


225 mm IBC lid with GORE vent

Pachmas S.K.U: 0144002252
