Plastic jerrycans stackable series - B 20L |
![](http://www.pachmas.com/main/print1.gif) |
|
|
Standard S.K.U.s |
9702009011 |
9702012501 |
Capacity |
23 L |
23 L |
Height |
393mm |
393 mm |
Length |
246 mm |
246 mm |
Width |
297 mm |
297 mm |
Weight |
930 gram |
1300 gram |
Material |
HMWHDPE |
HMWHDPE |
Inner layer |
|
|
Closure |
61 mm |
61 mm |
Color |
natural |
white |
Sector of use |
detergents, agrochemical |
detergents, agrochemical |
UN approval |
Y1.8/150 |
Y1.9/200 | |
![9702012501](http://www.pachmas.com/info/products/plastic_Jerrycans/01stack/9702012501.jpg)
|
|
|
Main Features and Applications |
-
Plastic Jerry-Cans are suitable for packaging, storing and transporting of most types of liquid substances, including food products and chemicals.
-
The jerry-cans are manufactured from high molecular weight high density polyethylene for maximum chemical resistance.
-
The jerry-cans complies with FDA code 175.300 for indirect contact with food and drugs and with Israel standard 5113 for plastic migration tests
-
All single package jerry-cans contain UV stabilizer to ensure protection during long term exposure to sun irradiation.
-
UN's approval is available for the transportation of hazardous materials by land, sea or air.
-
All types are equipped with integrated handle for easy handling.
-
One way and two ways vented caps are available for pressure release and venting.
-
All stackable jerry-cans are designed for best fit on standard "Euro Palettes".
-
All stackable jerry-cans are designed for perfect fit for stacked one on top of the other.
-
A side view strip is available for liquid level identification at most types.
|
|
|

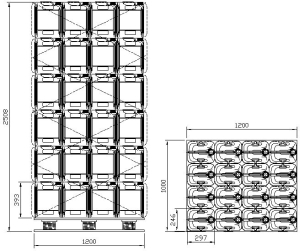

Pallet load for local market |
|
Freight load |
![](http://www.pachmas.com/info/products/plastic_Jerrycans/diagrams-small/pack/97020%20B%20-%20pack.jpg) |
|
For local market distribution
|
Units / Metal cage |
Units/ Pallet |
Units / Layer |
|
16 |
Number of layers |
|
6 |
Total |
|
96 |
|
Truck |
Full Trailer
|
Semi Trailer
|
Metal Cages / Vehicle |
|
|
|
Total Vehicle |
|
|
|
Pallets / Vehicle |
18 |
30 |
|
Total Vehicle |
1728 |
2880 |
|
Container load
|
Palletized Load |
Free Load |
Container |
Units / Pallet |
Pallets / Cont |
Units / Cont |
20FT |
80 |
10 |
800 |
|
40FT |
80 |
22 |
1760 |
|
HC |
96 |
22 |
2112 |
| |
|
|
Standard
![](http://www.pachmas.com/info/products/prod-pics/plastic_jerrican/stackable/0301403011.jpg)

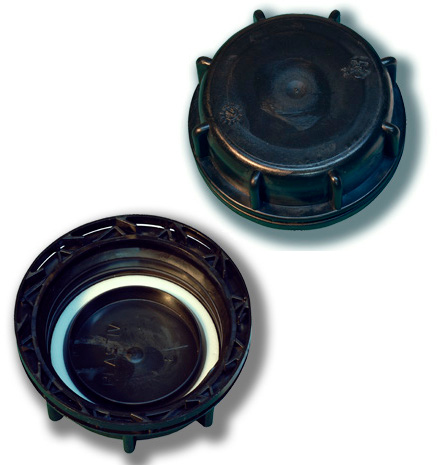

61 mm screw cup top EPE gasket with tamper evident ring
Pachmas S.K.U: 0301403011 |
![](http://www.pachmas.com/info/products/prod-pics/plastic_jerrican/stackable/0301403014.jpg)

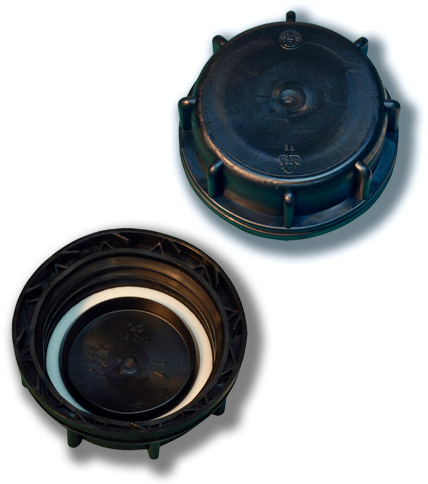

61 mm screw cup top EPE gasket with tamper evident ring
Pachmas S.K.U: 0301403014 |
![](http://www.pachmas.com/info/products/prod-pics/plastic_jerrican/stackable/11_liters/0301401901.jpg)

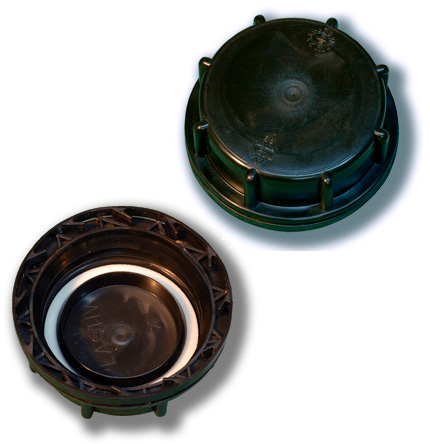

51 mm screw cup top EPE gasket with tamper evident ring
Pachmas S.K.U: 0301401901 |
| |
Optional
![](http://www.pachmas.com/info/products/prod-pics/plastic_jerrican/stackable/optional/0301402004.jpg)

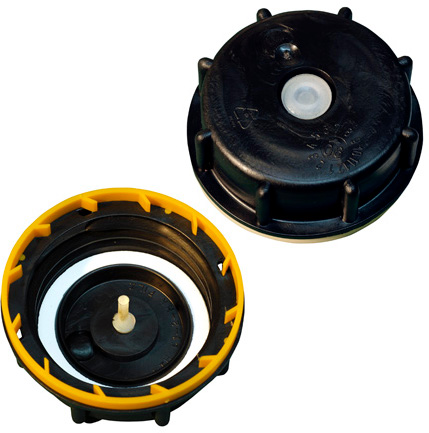

61 mm screw cup top silicon venting EPE gasket with tamper evident ring
Pachmas S.K.U: 0301402004
|
![](http://www.pachmas.com/info/products/prod-pics/plastic_jerrican/stackable/optional/0301403012.jpg)

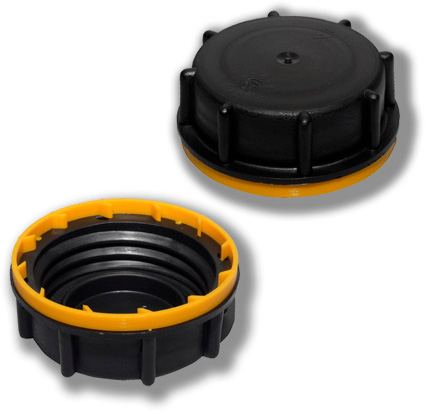

61 mm screw cup top ISOPRENE gasket with tamper evident ring
Pachmas S.K.U: 0301403012 |
![](http://www.pachmas.com/info/products/prod-pics/plastic_jerrican/stackable/optional/0301406000.jpg)

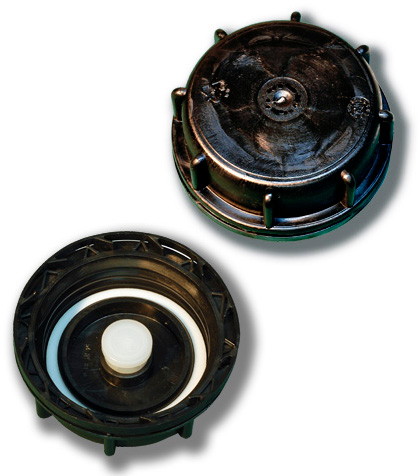

61 mm screw cup top membrane venting EPE gasket with tamper evident ring
Pachmas S.K.U: 0301406000
|
| |
