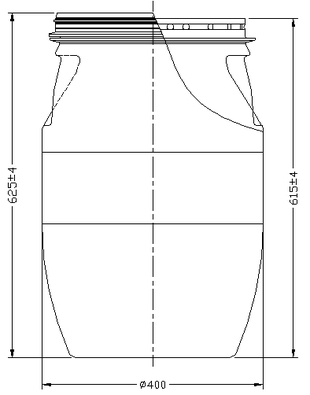

| Open Top Plastic Drum series - 60L |
 | |
|
| Capacity |
60 L |
| Maximum diameter |
400 mm |
| lid diameter |
325 mm |
| Total height |
625 mm |
| Total weight (with lid) |
2.9 kg |
| Lid type |
Standart lid |
| lid closure |
lever lock ringring |
| Handling |
lever lock ring |
| material |
HDPE |
| color |
blue |
| Sector of use |
food / chemicals |
| UN approval |
Y55/S |
| Standard S.K.U.s |
9606020802 | |
| |
|
| Main Features and Applications |
-
Open Top Plastic Drums are suitable for packaging, storing and transporting of liquids (in a bag), solid, powders and pasty products.
-
The drums are manufactured from high molecular weight high density polyethylene for maximum chemical resistance.
-
The drums complies with FDA code 175.300 for indirect contact with food and drugs and with Israel standard 5113 for plastic migration tests
-
All drums contain UV stabilizer to ensure protection during long term exposure to sun irradiation.
-
UN's approval is available for the transportation of hazardous materials by land, sea or air.
-
A plastic removable lid is fitted for most types lids are fitted with galvanized lever lock ring. The high volume drums are fitted with a plastic locking ring (all plastic drum). |
|
|

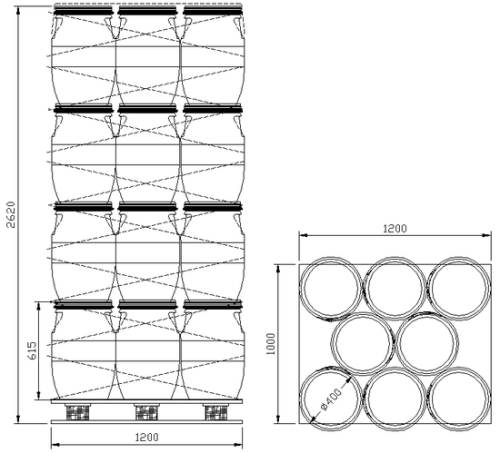

| Pallet load for local market |
|
Freight load |
 |
|
For local market distribution
|
Units / Metal cage |
Units/ Pallet |
| Units / Layer |
|
9 |
| Number of layers |
|
4 |
| Total |
|
36 |
|
Truck |
Full Trailer
|
Semi Trailer
|
| Metal Cages / Vehicle |
|
|
|
| Total Vehicle |
|
|
|
| Pallets / Vehicle |
15 |
25 |
|
| Total Vehicle |
540 |
900 |
|
Container load
|
Palletized Load |
Free Load |
| Container |
Units / Pallet |
Pallets / Cont |
Units / Cont |
| 20FT |
|
|
|
303 |
| 40FT |
|
|
|
646 |
| HC |
|
|
|
716 |
| |
|
Standard
|

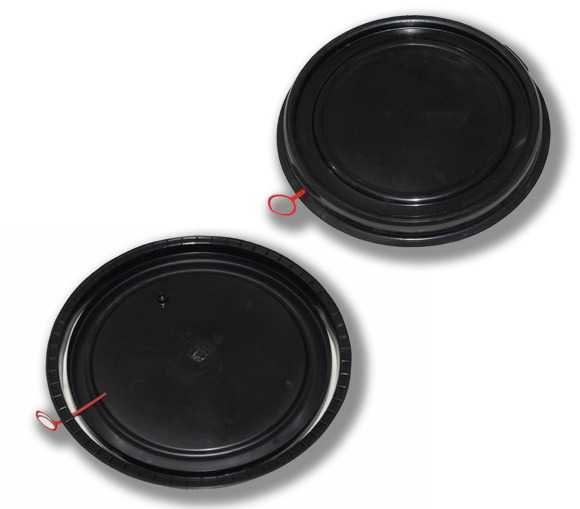

Standard Lid for OT plastic drum, D315mm with EPDM gasket
Pachmas S.K.U: 0140003250 |
| |
Optional
|
Alternative
|
|
|
