Tin Plate pails series - 18L
Standard S.K.U.s 9101805402 9101825651
Capacity 18 L 18 L
Upper diameter 285 mm 285 mm
Lower diameter 268 mm 268 mm
External height 330 mm 330 mm
Body thickness 0.3 mm 0.49 mm
Bottom thickness 0.3 mm 0.38 mm
Lid thickness 0.33 mm 0.35 mm
Weight 1.17 kg 1.89 kg
Body shape conical conical
Seaming double seaming double seaming
Lid re-sealable ring and latch re-sealable ring and latch
External coating white grey
Sector of use paint / chemicals paint / chemicals

9101805402



Main Features and Applications
  • Tin plated steel pails are suitable for packaging, storing and transporting of most types of liquid substances. Most common use is in the field of paints and lacquers, adhesives and glues
  • Strong, light weight, rigid and durable packaging
  • Nest-able pails – very efficient in transportation and storage before filling
  • A closed lid type is available for all sizes.
  • Available at metal thickness of 0.3-0.49 mm.
  • UN's approvals are available for some types for the transportation of hazardous materials by land, sea or air. (יתווסף בקרוב)
  • Integrated galvanized steel wire handle is fitted to the pail for easy handling
  • Different colors available.
  • All the colors are heavy metal free oven baked paints.
  • External printing of customer's lithography is available
  • Two types of removable lids are available: lug type lid and lid with locking lever ring.
views

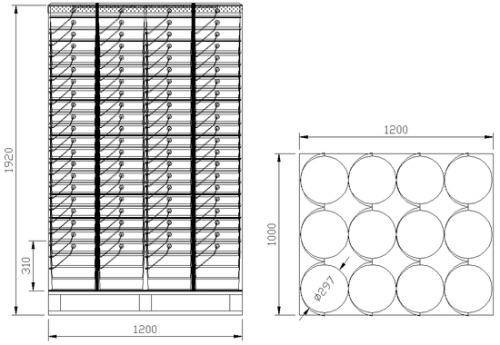

Pallet load for local market    Freight load

For local market distribution




Units / Metal cage Units/ Pallet
Units / Layer



12

Number of layers



21

Total



252




Truck Full Trailer
Semi Trailer
Metal Cages / Vehicle






Total Vehicle






Pallets / Vehicle

18

30


Total Vehicle

4536

7560




Container load


Palletized Load
Free Load
Container Units / Pallet Pallets / Cont Units / Cont
20FT

282

10

2820



40FT

282

22

6204



HC

319

22

7018




Accessories
Standard


Optional

lever lock ring D285
Pachmas S.K.U:  0309002850


Plastic safty pin for lever lock ring

Pachmas S.K.U: 0310010020
