Plastic jerrycans Coex series - 20L Type B
Standard S.K.U.s 9702012500
Capacity 23 L

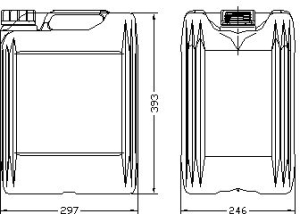

Height 393 mm
Length 246 mm
Width 297 mm
Weight 1250 gram
Material HMWHDPE
Inner layer PA
Closure 61 mm
Color white
Sector of use detergents, agrochemical
UN approval Y1.6/200


Main Features and Applications
  • The DuEx jerry-cans are produced under Pachmas IP. Pachmas patent for the production of DuEx jerry-cans is register around the world.
  • A solvent barrier is available at up to 20 liters jerry-cans for minimal permeation of the volatile materials. The patented two layer design is especially suitable for Agro-Chemical products, including pesticides, insecticides and herbicides.
  • An oxygen barrier is available at up to 5 liters jerry-cans for minimal oxygen interaction with the packed substance.
  • The jerry-cans are manufactured from high molecular weight high density polyethylene. The barrier is manufactured from polyamide.
  • The jerry-cans complies with FDA code 175.300 for indirect contact with food and drugs and with Israel standard 5113 for plastic migration tests
  • All single package jerry-cans contain UV stabilizer to ensure protection during long term exposure to sun irradiation.
  • UN's approval is available for the transportation of hazardous materials by land, sea or air.
  • All types are equipped with integrated handle for easy handling.
  • Suitable for induction welding of an IHS cap membrane.
  • All stackable jerry-cans are designed for best fit on standard "Euro Palettes".
  • All stackable jerry-cans are designed for perfect fit for stacked one on top of the other.
  • A side view strip is available for liquid level identification at most types.
views

Pallet load for local market   Freight load

For local market distribution



Units / Metal cage Units/ Pallet
Units / Layer



16

Number of layers

6

Total

96




Truck Full Trailer
Semi Trailer
Metal Cages / Vehicle





Total Vehicle





Pallets / Vehicle

18

30

Total Vehicle

1728

2880




Container load

Palletized Load
Free Load
Container Units / Pallet Pallets / Cont Units / Cont
20FT

80

10

800



40FT

80

22

1760



HC

96

22

2112




Accessories
Standard

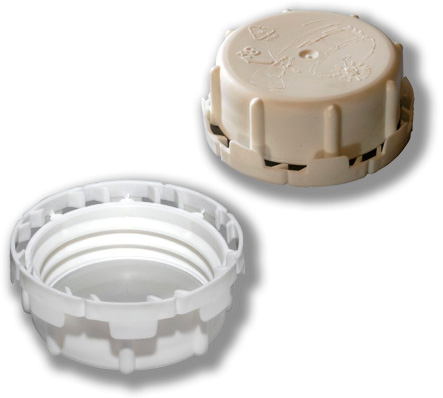

61 mm screw cup top induction flat gasket with tamper evident ring
Pachmas S.K.U:   0301406016


61 mm screw cup top EPE gasket with tamper evident ring

Pachmas S.K.U: 0301403014


51 mm screw cup top EPE gasket with tamper evident ring

Pachmas S.K.U: 0301401901


Optional


61 mm screw cup top silicon venting EPE gasket with tamper evident ring
Pachmas S.K.U:  0301402004




61 mm screw cup top ISOPRENE gasket with tamper evident ring

 Pachmas S.K.U:   0301403012


61 mm screw cup top membrane venting EPE gasket with tamper evident ring
Pachmas S.K.U: 0301406000


Alternative
