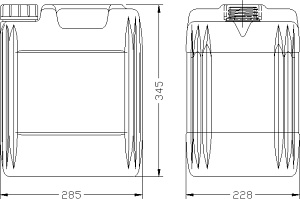

Plastic jerrycans stackable series - S 18L
Standard S.K.U.s 9701807001
Capacity 16 L
Height 345 mm
Length 228 mm
Width 285 mm
Weight 700 gram
Material HDPE
Inner layer
Closure 61 mm
Color yellow
Sector of use olive oil
UN approval -


Main Features and Applications
  • Plastic Jerry-Cans are suitable for packaging, storing and transporting of most types of liquid substances, including food products and chemicals.
  • The jerry-cans are manufactured from high molecular weight high density polyethylene for maximum chemical resistance.
  • The jerry-cans complies with FDA code 175.300 for indirect contact with food and drugs and with Israel standard 5113 for plastic migration tests
  • All single package jerry-cans contain UV stabilizer to ensure protection during long term exposure to sun irradiation.
  • UN's approval is available for the transportation of hazardous materials by land, sea or air.
  • All types are equipped with integrated handle for easy handling.
  • One way and two ways vented caps are available for pressure release and venting.
  • All stackable jerry-cans are designed for best fit on standard "Euro Palettes".
  • All stackable jerry-cans are designed for perfect fit for stacked one on top of the other.
  • A side view strip is available for liquid level identification at most types.
views

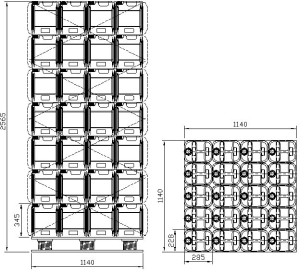

Pallet load for local market    Freight load

For local market distribution



Units / Metal cage Units/ Pallet
Units / Layer



20

Number of layers

7

Total

140




Truck Full Trailer
Semi Trailer
Metal Cages / Vehicle





Total Vehicle





Pallets / Vehicle

18

30

Total Vehicle

2520

4200




Container load

Palletized Load
Free Load
Container Units / Pallet Pallets / Cont Units / Cont
20FT

120

10

1200



40FT

120

20

2400



HC

140

20

2800



Accessories
Standard

61 mm screw cup top EPE gasket with tamper evident ring
Pachmas S.K.U:  0301403011


61 mm screw cup top EPE gasket with tamper evident ring

Pachmas S.K.U: 0301403014


51 mm screw cup top EPE gasket with tamper evident ring

Pachmas S.K.U: 0301401901


Optional


61 mm screw cup top silicon venting EPE gasket with tamper evident ring
Pachmas S.K.U:  0301402004




61 mm screw cup top ISOPRENE gasket with tamper evident ring

 Pachmas S.K.U:   0301403012


61 mm screw cup top membrane venting EPE gasket with tamper evident ring
Pachmas S.K.U: 0301406000


Alternative
