Fibre drums series (D571) - 195L / 7
Standard S.K.U.s 9819509421
Capacity 195 L

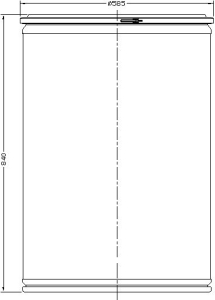

Maximum diameter 585 mm
Internal diameter 571 mm
Total height (with lid) 840 mm
number of layers  7
internal coating   -
external coating acrilic varnish
Total weight 8.4 kg
Lid type red metal
lid closure lever lock ring
Sector of use  chemicals
UN approval Y150/S


Main Features and Applications
  • Open Top Fibre Drums are suitable for packaging, storing and transporting of solids, powders and pasty products.
  • Strong, light weight, rigid and durable packaging
  • UN's approvals are available for some types for the transportation of hazardous materials by land, sea or air.
  • Internal moisture protection is available.
  • External coating of acrylic lacquer is available for outdoor protection.
  • External screen printing of customer's design in the middle of the drum is optional.
  • A removable metal lid is fitted to the drum's top. A Plastic lid is optional for some types. The lid is locked by a galvanized lever lock ring with safety pin hole.
views

Pallet load for local market    Freight load

For local market distribution



Units / Metal cage Units/ Pallet
Units / Layer

20

3

Number of layers

3

3

Total

60

12




Truck Full Trailer
Semi Trailer
Metal Cages / Vehicle

3

5

Total Vehicle

180

300

Pallets / Vehicle

14

24

Total Vehicle

168

288




Container load

Palletized Load
Free Load
Container Units / Pallet Pallets / Cont Units / Cont
20FT







107

40FT







214

HC







240
