| Fibre drums series (D500) - 142L / 6 |
 | |
|
| Standard S.K.U.s |
9814206425 |
| Capacity |
142 L |

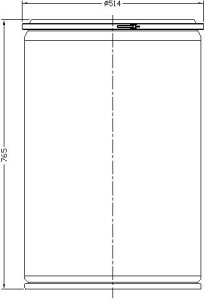

| Maximum diameter |
514 mm |
| Internal diameter |
500 mm |
| Total height (with lid) |
770 mm |
| Number of layers |
6 |
| Internal coating |
- |
| External coating |
acrilic varnish |
| Total weight |
5.6 kg |
| Lid type |
metal GA |
| lid closure |
lever lock ring |
| Sector of use |
chemicals |
| UN approval |
Y90/S | |
| |
|
| Main Features and Applications |
-
Open Top Fibre Drums are suitable for packaging, storing and transporting of solids, powders and pasty products.
-
Strong, light weight, rigid and durable packaging
-
UN's approvals are available for some types for the transportation of hazardous materials by land, sea or air.
-
Internal moisture protection is available.
-
External coating of acrylic lacquer is available for outdoor protection.
-
External screen printing of customer's design in the middle of the drum is optional.
-
A removable metal lid is fitted to the drum's top. A Plastic lid is optional for some types. The lid is locked by a galvanized lever lock ring with safety pin hole. |
|
|

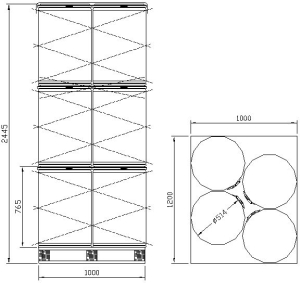

| Pallet load for local market |
|
Freight load |
 |
|
For local market distribution
|
Units / Metal cage |
Units/ Pallet |
| Units / Layer |
25 |
4 |
| Number of layers |
3 |
3 |
| Total |
75 |
12 |
|
Truck |
Full Trailer
|
Semi Trailer
|
| Metal Cages / Vehicle |
3 |
5 |
|
| Total Vehicle |
225 |
375 |
|
| Pallets / Vehicle |
14 |
24 |
|
| Total Vehicle |
168 |
288 |
|
Container load
|
Palletized Load |
Free Load |
| Container |
Units / Pallet |
Pallets / Cont |
Units / Cont |
| 20FT |
|
|
|
156 |
| 40FT |
|
|
|
312 |
| HC |
|
|
|
312 |
| |
|
|
