Fibre drums series (D400) - 69L / 6
Standard S.K.U.s 9806908421
Capacity 69 L

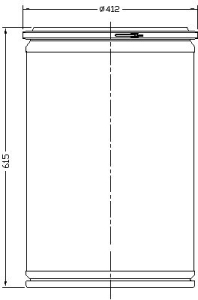

Maximum diameter 412 mm
Internal diameter 400 mm
Total height (with lid) 615 mm
Number of layers  6
Internal coating  -
External coating acrilic varnish
Total weight 3.7 kg
Lid type metal GA
lid closure lever lock ring
Sector of use  chemicals
UN approval Y95/S


Main Features and Applications
  • Open Top Fibre Drums are suitable for packaging, storing and transporting of solids, powders and pasty products.
  • Strong, light weight, rigid and durable packaging
  • UN's approvals are available for some types for the transportation of hazardous materials by land, sea or air.
  • Internal moisture protection is available.
  • External coating of acrylic lacquer is available for outdoor protection.
  • External screen printing of customer's design in the middle of the drum is optional.
  • A removable metal lid is fitted to the drum's top. A Plastic lid is optional for some types. The lid is locked by a galvanized lever lock ring with safety pin hole.
views

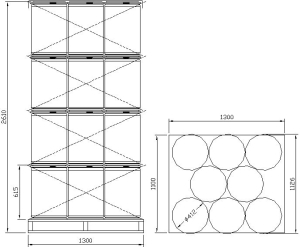

Pallet load for local market    Freight load

For local market distribution



Units / Metal cage Units/ Pallet
Units / Layer

40

8

Number of layers

4

4

Total

160

32




Truck Full Trailer
Semi Trailer
Metal Cages / Vehicle

3

5

Total Vehicle

480

800

Pallets / Vehicle

14

24

Total Vehicle

448

768




Container load

Palletized Load
Free Load
Container Units / Pallet Pallets / Cont Units / Cont
20FT







211

40FT







601

HC







660


Accessories
Standard

Plastic lid for D400 fiber drum
Pachmas S.K.U: 0141054000

Optional

Alternative
