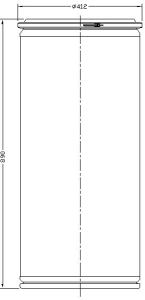

| Fibre drums series (D400) - 105L / 6 |
 | |
|
| Standard S.K.U.s |
9810508421 |
| Capacity |
105 L |
| Maximum diameter |
412 mm |
| Internal diameter |
400 mm |
| Total height (with lid) |
890 mm |
| Number of layers |
6 |
| Internal coating |
- |
| External coating |
acrilic varnish |
| Total weight |
3.9 kg |
| Lid type |
metal GA |
| lid closure |
lever lock ring |
| Sector of use |
chemicals |
| UN approval |
Y126/S | |
| |
|
| Main Features and Applications |
-
Open Top Fibre Drums are suitable for packaging, storing and transporting of solids, powders and pasty products.
-
Strong, light weight, rigid and durable packaging
-
UN's approvals are available for some types for the transportation of hazardous materials by land, sea or air.
-
Internal moisture protection is available.
-
External coating of acrylic lacquer is available for outdoor protection.
-
External screen printing of customer's design in the middle of the drum is optional.
-
A removable metal lid is fitted to the drum's top. A Plastic lid is optional for some types. The lid is locked by a galvanized lever lock ring with safety pin hole. |
|
|

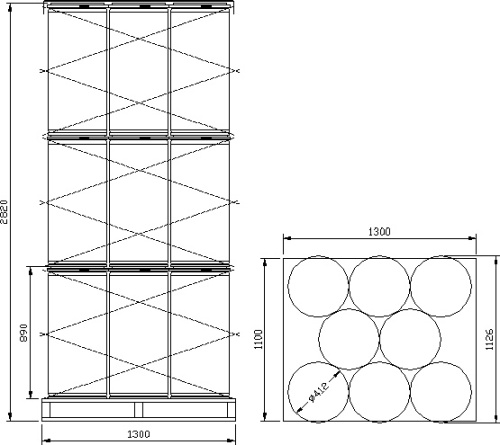

| Pallet load for local market |
|
Freight load |
 |
|
For local market distribution
|
Units / Metal cage |
Units/ Pallet |
| Units / Layer |
40 |
8 |
| Number of layers |
3 |
3 |
| Total |
120 |
24 |
|
Truck |
Full Trailer
|
Semi Trailer
|
| Metal Cages / Vehicle |
3 |
5 |
|
| Total Vehicle |
360 |
600 |
|
| Pallets / Vehicle |
14 |
28 |
|
| Total Vehicle |
336 |
576 |
|
Container load
|
Palletized Load |
Free Load |
| Container |
Units / Pallet |
Pallets / Cont |
Units / Cont |
| 20FT |
|
|
|
190 |
| 40FT |
|
|
|
401 |
| HC |
|
|
|
495 |
| |
|
Standard

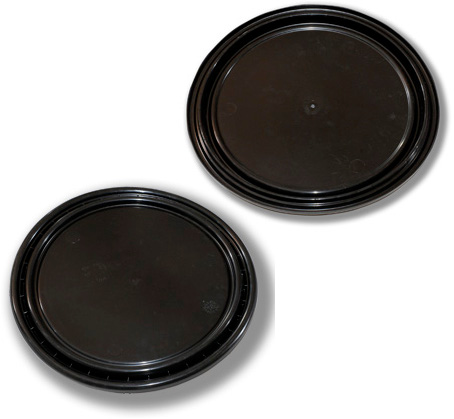

Plastic lid for D400 fiber drum
Pachmas S.K.U: 0141054000 |
| |
Optional
|
Alternative
|
|
|
